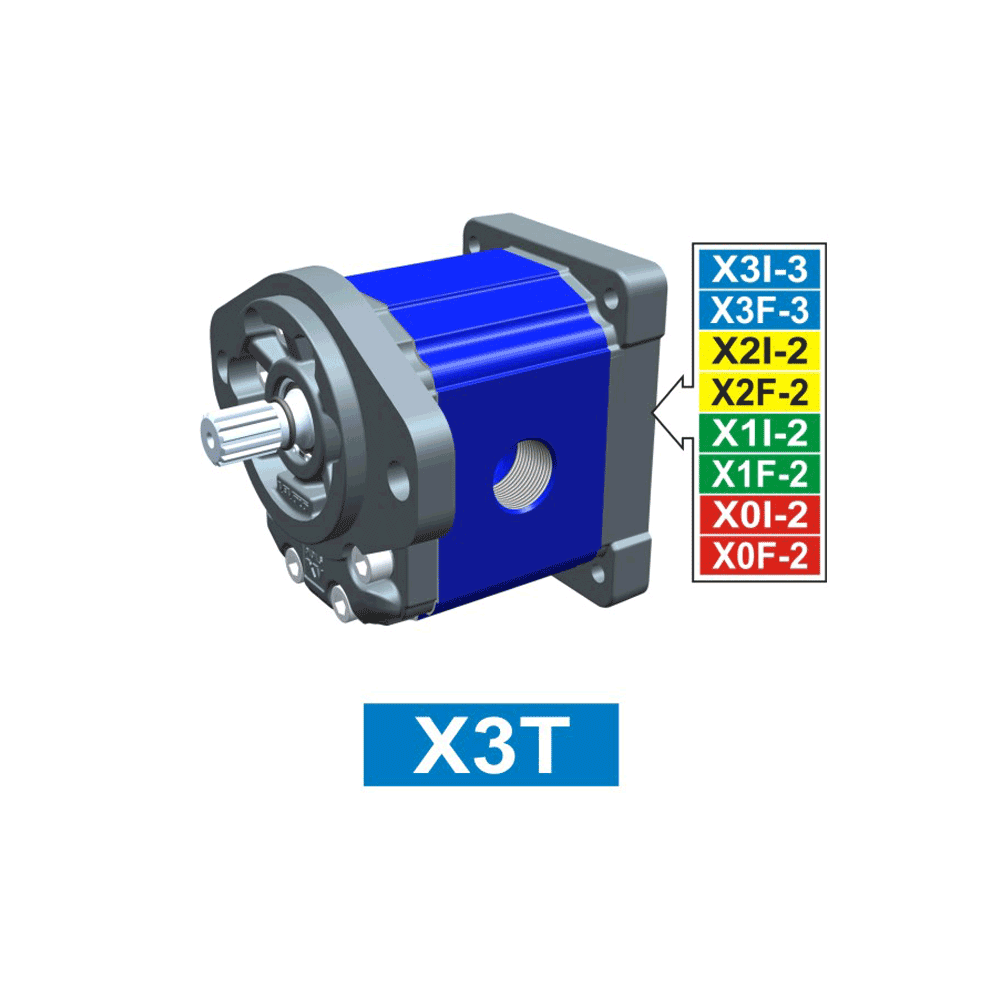

| Technical data table | |||||
| TYPE | Displacement | Max. Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| X3T/15 | 15 | 300 | 320 | X3T6631IDDA | X3T6632IDDA |
| X3T/18 | 17 | 300 | 320 | X3T6831IDDA | X3T6832IDDA |
| X3T/21 | 21 | 280 | 300 | X3T7031IDDA | X3T7032IDDA |
| X3T/27 | 27 | 250 | 270 | X3T7231IEEA | X3T7232IEEA |
| X3T/32 | 32 | 250 | 270 | X3T7431IEEA | X3T7432IEEA |
| X3T/38 | 38 | 250 | 270 | X3T7831IEEA | X3T7832IEEA |
| X3T/43 | 43 | 250 | 270 | X3T7931IEEA | X3T7932IEEA |
| X3T/47 | 47 | 230 | 250 | X3T8031IEEA | X3T8032IEEA |
| X3T/51 | 51 | 230 | 250 | X3T8131IEEA | X3T8132IEEA |
| X3T/54 | 55 | 230 | 250 | X3T8231IEEA | X3T8232IEEA |
| X3T/61 | 61 | 230 | 250 | X3T8331IFFA | X3T8332IFFA |
| X3T/64 | 65 | 210 | 230 | X3T8531IFFA | X3T8532IFFA |
| X3T/70 | 71 | 200 | 220 | X3T8631IFFA | X3T8632IFFA |
| X3T/74 | 74 | 180 | 200 | X3T8731IFFA | X3T8732IFFA |
| X3T/90 | 87 | 150 | 170 | X3T8931IFFA | X3T8932IFFA |
P1) Max. working pressure – P3) Max. peak pressure
